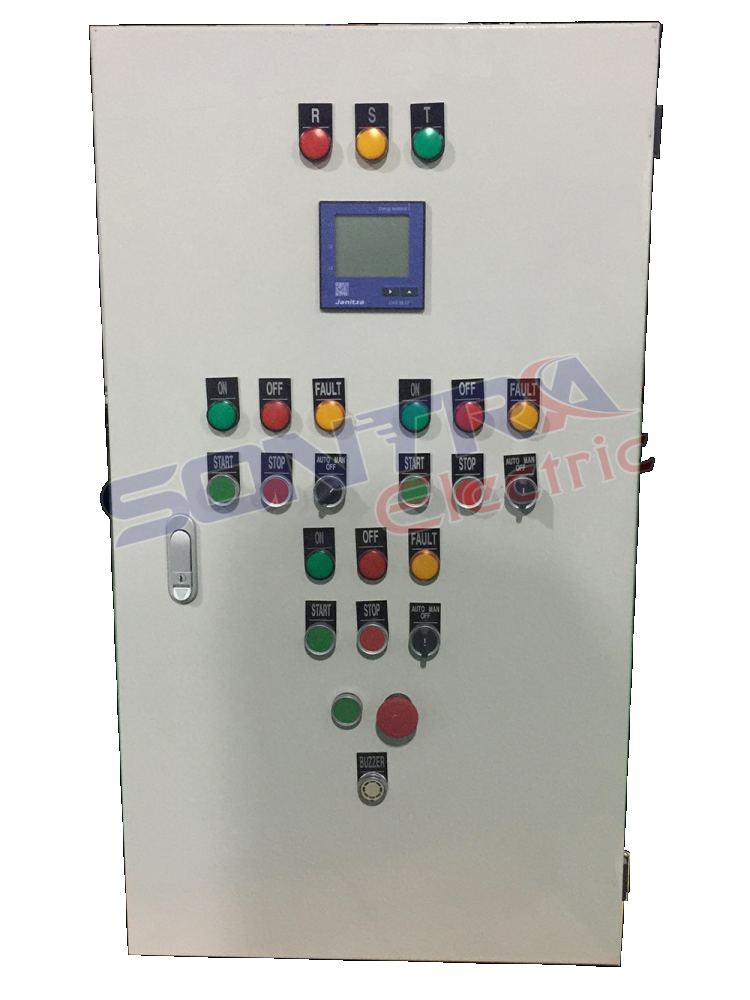

Cubiele Switchboards which are designed and manufactured in accordance with strict quality management, high stability and secure operation has been widely used in power stations, power distribution station in power companies, industrial parks, residential quarters and factories...| Application | Distribute, supply lighting power |
| Standard | IEC 62271 - 202 |
| Installation position | Indoor |
| Specification | Value) |
| Standard | IEC 61439 - 1 - 2 |
| Full Type Test | Quatest 2 VN KEMA Europe |
| Number of Pole | 1P/ 2P/ 3P/ 4P |
| Rated operational voltage (Ue) | 220-230/380-415 VAC |
| Rate voltage (Ui) | 1000V |
| Rated impulse withstand voltage | 8KV |
| Overvoltage level | III/ IV |
| Frequency | 40 - 60 Hz |
| Rated current (In) | 1000A |
| Rated short-time withstand current | 65kA |
| Earthing arrangements | TN, TN-C, TN-S |
| Maximum temperature increase | 50°C |
| Ingress Protection | IP42, IP55, IP65 |
| Material | Imported steel sheet ensures the standard |
| Structure | Enclosure: made by 1.2mm - 2mm thickness steel sheet, Hot-dip galvanization or electrostatic powder coating Layer Door: Single or Double. |
| Internal partition | 1mm – 1.5mm thickness tole, hot-dip galvanization or electrostatic powder coating |
| Partitioning Forms | Form 1 |
| Dimension | H: 300 - 1800 W: 500 - 1000 D: 220 - 300/ 300 - 500 |
