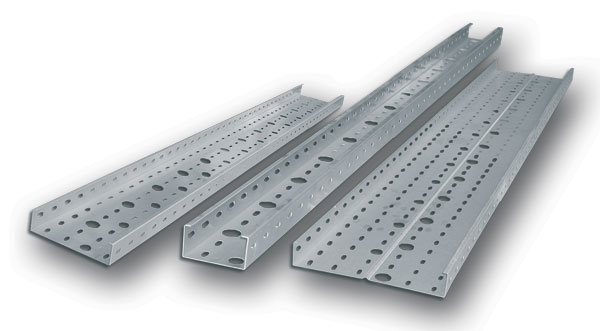

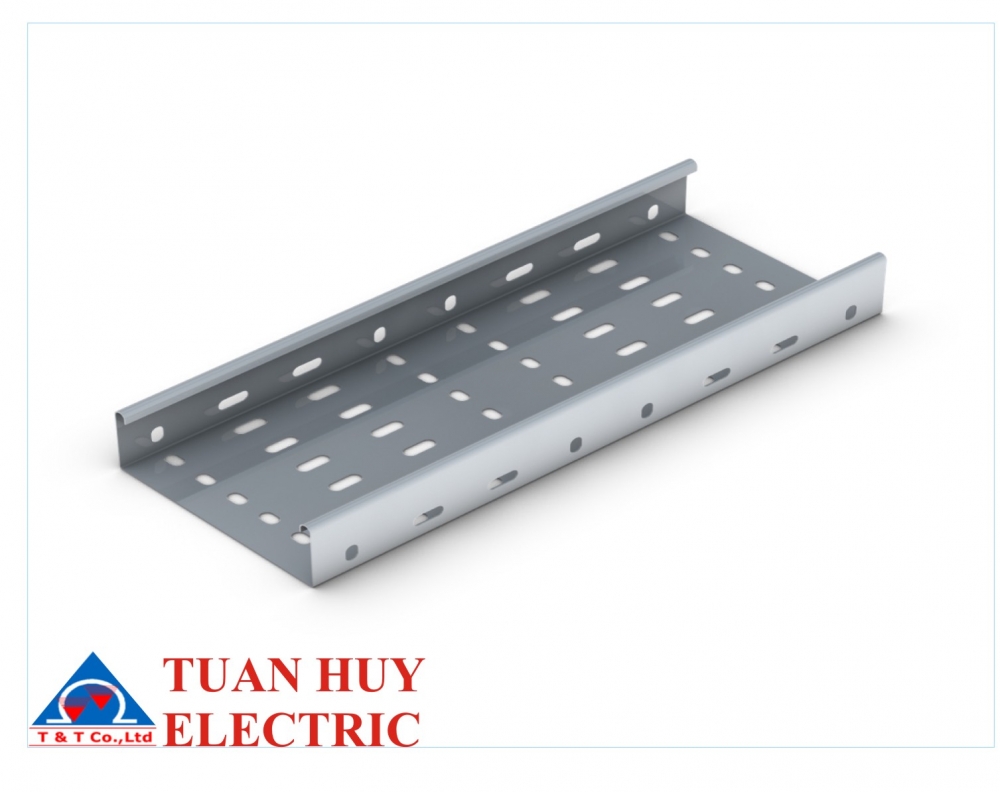

Cable Tray

A cable tray system is used to support insulated electric cables used for power distribution and communication. This system is suitable for workshops, buildings …

Giá : Liên hệ

SL : Đặt mua

Đặc điểm
Thông số kỹ thuật
Catalog

The cable tray systems are commonly used for cable management in commercial and industrial construction.

The cable tray system are especially useful in situations where changes in a wiring system are anticipated since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.

Common cable tray is made of galvanized steel, stainless steel, steel finished with powder coating. The material for a given application is chosen based on where it will be used. Galvanized cable may be made of pre-galvanized steel sheet fabricated into the cable tray, or may be hot-dip galvanized after fabrication. When galvanized tray is cut to length in the field, usually the cut surface will be painted with a zinc-rich compound to protect the metal from corrosion.

Dimensions:

Width: 75 ÷ 800mm
Height: 50 ÷ 200mm
Length: 2440mm, 2500mm hoặc 3000mm
Thickness: 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm và 2.5mm
Common color: White, beige, grey, orange or original material color. Other colors are available upon request.

Common cable tray sizes are listed as below. The other sizes are available upon request

Item	Code	Hieght H (mm)	Width W (mm)	Thickness T (mm)
Cable tray 50x75	KC50x75	50	75	0.8 - 1.0 - 1.2 - 1.5
Cable tray 50x100	KC50x100	50	100	0.8 - 1.0 - 1.2 - 1.5
Cable tray 50x150	KC50x150	50	150	0.8 - 1.0 - 1.2 - 1.5
Cable tray 50x200	KC50x200	50	200	0.8 - 1.0 - 1.2 - 1.5
Cable tray 50x250	KC50x250	50	250	1.0 - 1.2 - 1.5 - 2.0
Cable tray 50x300	KC50x300	50	300	1.0 - 1.2 - 1.5 - 2.0
Cable tray 75x100	KC75x100	75	100	0.8 - 1.0 - 1.2 - 1.5
Cable tray 75x150	KC75x150	75	150	0.8 - 1.0 - 1.2 - 1.5
Cable tray 75x200	KC75x200	75	200	1.0 - 1.2 - 1.5 - 2.0
Cable tray 75x250	KC75x250	75	250	1.2 - 1.5 - 2.0
Cable tray 75x300	KC75x300	75	300	1.2 - 1.5 - 2.0
Cable tray 75x400	KC75x400	75	400	1.2 - 1.5 - 2.0
Cable tray 100x100	KC100x100	100	100	1.0 - 1.2 - 1.5 - 2.0
Cable tray 100x150	KC100x150	100	150	1.2 - 1.5 - 2.0
Cable tray 100x200	KC100x200	100	200	1.2 - 1.5 - 2.0
Cable tray 100x250	KC100x250	100	250	1.2 - 1.5 - 2.0
Cable tray 100x300	KC100x300	100	300	1.2 - 1.5 - 2.0
Cable tray 100x400	KC100x400	100	400	1.5 - 2.0
Cable tray 100x500	KC100x500	100	500	1.5 - 2.0
Cable tray 100x600	KC100x600	100	600	2.0
Cable tray 150x150	KC150x150	150	150	1.2 - 1.5 - 2.0
Cable tray 150x200	KC150x200	150	200	1.2 - 1.5 - 2.0
Cable tray 150x300	KC150x300	150	300	1.2 - 1.5 - 2.0
Cable tray 150x400	KC150x400	150	400	1.5 - 2.0
Cable tray 150x500	KC150x500	150	500	1.5 - 2.0
Cable tray 150x600	KC150x600	150	600	2.0
Cable tray 150x800	KC150x800	150	800	2.0
Cable tray 200x400	KC200x400	200	400	2.0
Cable tray 200x500	KC200x500	200	500	2.0
Cable tray 200x600	KC200x600	200	600	2.0
Cable tray 200x800	KC200x800	200	800	2.0
