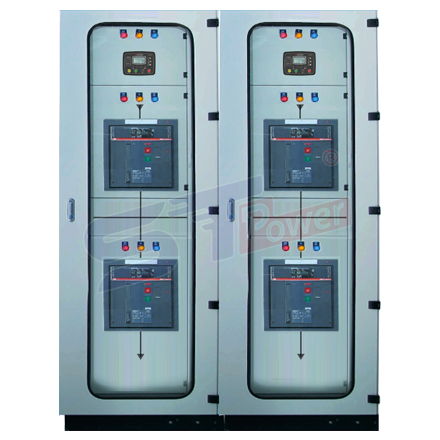

MSB (Main Distribution Switchboard) is a kind of electrical cabinet installed right after the low voltage substations (from 15kV down to 380VAC), the major function of MSB cabinets is connect & disconnect, safety protection for electrical systems. Rated current can reach approximately 6300A.
STPower - Cable ladder is also known as electric ladder, applied to install electrical wires and cables in factories, apartments, buildings ... is the bearing structure of the system.
Product new: STPower - Distributors and Agents for Electrical products ABB in the central of Vietnam
Cubiele Switchboards which are designed and manufactured in accordance with strict quality management, high stability and secure operation has been widely used in power stations, power distribution station in power companies, industrial parks, residential quarters and factories...
Breakers & Switches are designed for flexibility and reliable performance in a wide variety of applications: power distribution for residential and industrial buildings, HVAC, water pumping stations, data centers
Cable tray (trunking) is the conduit for the installation of wires and cables in factories, apartment buildings, office buildings
Cubiele Switchboards which are designed and manufactured in accordance with strict quality management, high stability and secure operation has been widely used in power stations, power distribution station in power companies, industrial parks, residential quarters and factories...| Application | Monitoring Warning |
| Standards | IEC 62271 - 202 |
| Installatin space | Indoor |
| Specification | Value |
| Standard | IEC 61439 - 1 - 2 |
| Full Type Test | Quatest 2 VN KEMA Europe |
| Input rated operational voltages | 380/400 VAC, 3 pha |
| Output rated voltages | 1 pha 220 VAC, 3 pha 380 VAC |
| Rated current | 25 ÷ 6300A |
| Short-circuit breaking current | 25 ÷ 100kA |
| Frequency | 50 - 60 Hz |
| Material | Imported steel sheet ensures the standard |
| Structure | Enclosure: Made of 1.2mm - 2mm thickness steel sheet, Hot-dip galvanization or electrostatic powder coating Layer Door: Single or Double. |
| Internal partition | 1mm – 1.5mm thickness tole, hot-dip galvanization or electrostatic powder coating |
